Hioki Clamp On AC/DC HiTester - Model 3284
Hioki

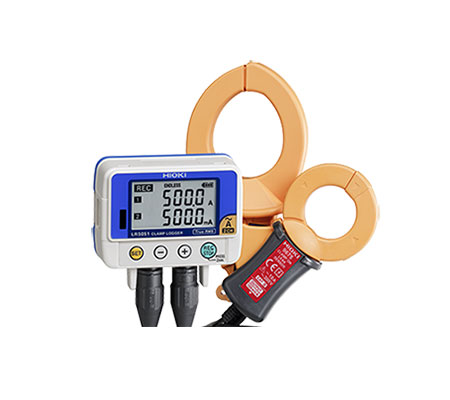

Hioki Clamp Logger – Model LR5051

Hioki Clamp Logger

Easily Record Load Current of 50Hz/60Hz Lines and Leak Current

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5051 logs current over 2 channels in as fast as 1 second intervals. Key Features • Easily mount the light-weight , pocket-sized loggers in tight spaces • Easy-to-see dual display • Transfer data to PC even during recording • Replace batteries while recording (30 second limit) • 3 times the memory capacity compared to predecessor (Record 60,000 data per channel) • Record without missing fluctuations in STAT mode • Measurement data is preserved even after the battery dies • Worry-free backup preserves recorded data even if a new measurement is started by mistake Hioki Clamp Logger Dealers, Distributors in Dubai UAE.

19 People watching this product now!

AC Spare Parts Wholesaler in Dubai

Hioki supplier in Dubai UAE.

We are the leading Wholesaler, Distributor, Supplier of Hioki Clamp Logger – Model LR5051 in Dubai UAE.

SKU: LR5051 Category:
Description
Measurement items AC Current 2 channels (used with the optional current sensor; load current 2ch, leak current 2ch, or load/leak each 1ch)
Caution: Current and leak current that occur intermittently cannot be measured.
Measurement range 500.0 mA to 1000 A AC rms, 5 range (depends on current sensor in use)
Basic accuracy ±2.0% rdg. ±0.13% f.s. (main unit + current sensor accuracy, at 500.0 A range, 50/60 Hz)
Note: Basic accuracy is typical value, only main unit accuracy: ±0.5 %rdg. ±5 dgt., must added clamp sensor accuracy, refer to the detailed catalog
Storage capacity Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch
Recording interval 1 to 30 sec., 1 to 60 min., 15 selections
Recording modes Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
Recording methods One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
Other functions Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Waterproof and dust-proof N/A
Interfaces Infrared optical communications with LR5091, LR5092-20
Power supply LR6 (AA) Alkaline battery ×2, Battery life: Approx. 1 year (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 1 month (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and mass 79 mm (3.11 in) W × 70 mm (2.76 in) H × 37 mm (1.46 in) D, 165 g (5.8 oz)
Accessories LR6 (AA) Alkaline battery (built-in internal) × 2, Instruction manual × 1, Operation guide × 1

Air Conditioning & Refrigeration Spare Parts Suppliers in Dubai. Hioki Clamp Logger Dealers, Distributors in Dubai UAE.
