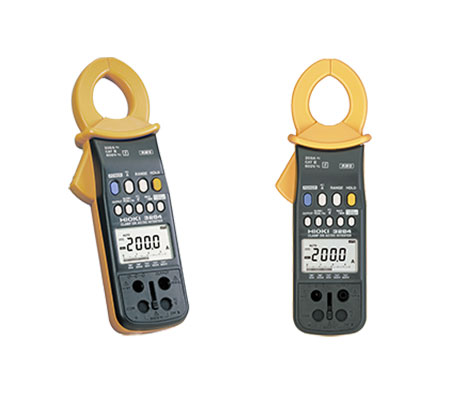

Hioki Clamp On AC/DC HiTester – Model 3284

Hioki Clamp On AC/DC HiTester

20A/200A AC/DC Clamp Meters with Analog Output and Peak Hold for Inrush Measurement Applications

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3284 is an AC/DC current and voltage clamp meter with analog output capabilities and a peak hold function. Key Features • Analog output for current measuring level, current measuring waveform, or frequency measuring level. • Peak hold function displays the crest value of the inrush current occurring when electrical equipment starts • AC+DC mode enables measurement of the RMS value of full- or half-wave rectified waveforms Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.

15 People watching this product now!

Air Conditioner Spare Parts Supplier in Dubai UAE

Hioki supplier in Dubai UAE.

We are the leading Wholesaler, Distributor, Supplier of Hioki Clamp On AC/DC HiTester – Model 3284 in Dubai UAE.

SKU: 3284 Category:
Description
DC Current range 20.00/ 200.0 A, Basic accuracy: ±1.3 % rdg. ±3 dgt.
AC Current range 20.00/ 200.0 A (10 Hz to 2 kHz, True RMS),
Basic accuracy 45-66 Hz: ±1.3 % rdg. ±3 dgt.
DC Voltage range 30.00 V to 600 V, 3 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range 30.00 V to 600 V, 3 ranges (10 to 1 kHz, True RMS),
Basic accuracy 45-66 Hz: ±1.0 % rdg. ±3 dgt.
Crest factor 2.5 or less (1.5 at 200 A, 1.7 at 600 V)
Monitor, Analog output DC, or AC 1 V/ f.s., Level output, Waveform output: DC to 20 kHz bandwidth (±3dB)
Resistance, Continuity check N/A
Frequency range 1.00 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt.
Other functions AC+DC mode, Maximum/ Minimum/ Average value record function, Data hold, Peak hold, Auto power off, Auto zero
Display Display refresh rate: 4 times/s (FAST), 1 time/3s (SLOW), 4 times/s (bar graph)
Power supply 6F22 (Stacked manganese battery) ×1, Continuous use: 25 hours, or AC adapter 9445-02/-03
Core jaw dia. φ 33 mm (1.30 in)
Dimensions and mass 62 mm (2.44 in) W × 230 mm (9.06 in) H × 39 mm (1.54 in) D, 460 g (16.2 oz)
Accessories Test Lead L9207-10 ×1, Carrying Case 9399 ×1, Hand strap ×1, 6F22 (Stacked manganese battery) ×1, Instruction manual ×1

Air Conditioning & Refrigeration Spare Parts Suppliers in Dubai. Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.
