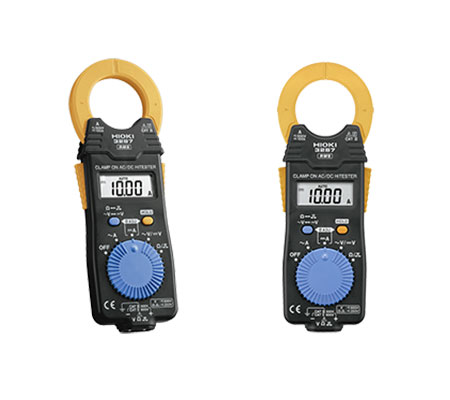

Hioki Clamp On AC/DC HiTester – Model 3287

Hioki Clamp On AC/DC HiTester

Compact & Easy, One-Touch Maintenance on All Types of AC/DC Equipment

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires. CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage) Key Features • True RMS rectification • Accurately measure even small currents with 10 A range • Voltage, resistance, and continuity check functions Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.

16 People watching this product now!

Middle East's Biggest AC Spare Parts Company

Hioki supplier in Dubai UAE.

We are the leading Wholesaler, Distributor, Supplier of Hioki Clamp On AC/DC HiTester – Model 3287 in Dubai UAE.

SKU: 3287 Category:
Description
DC Current range 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)
Basic accuracy: ±2.3 % rdg. ±8 dgt.
Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
Crest factor 2.5 or less (150 A, 1000 V max.)
Other functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
Core jaw dia. φ 35 mm (1.38 in)
Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz)
Accessories Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1

Air Conditioning & Refrigeration Spare Parts Suppliers in Dubai. Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.
