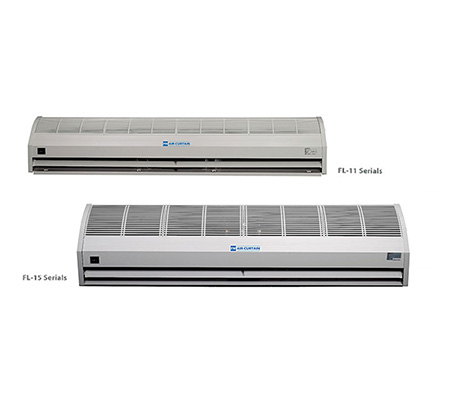

P&M Air Curtain – Model FL-11 Serials
P&M Air Curtains
| UPC No. | Item No. | Width of unit (cm) | Power (Φ. Hz. V) | Input (W) | Current (A) | Max. air velocity (m/sec) | Air volume (m3/h) | Airthrow (m) |
| 40200 | FL-1109S | 90 | 1Φ, 60Hz, 110/220V | 100 | 1.08 / 0.55 | 11.5 | 1750 | 3.5 |
| 40201 | FL-1112S | 120 | 1Φ, 60Hz, 110/220V | 150 | 1.46 / 0.75 | 11.5 | 2450 | 3.5 |
| 40222 | FL-1115S | 150 | 1Φ, 60Hz, 110/220V | 205 | 1.84 / 0.93 | 11.5 | 3000 | 3.5 |
| 40245 | FL-1118S | 180 | 1Φ, 60Hz, 110/220V | 265 | 2.33 / 1.22 | 11.5 | 3600 | 3.5 |
| 40204 | FL-1109DF 220V Two phases of wind speed | 90 | 1Φ, 50/60Hz, 220V | 120 | 0.45 / 0.55 | 9.0~11.5 | 1450~1750 | 2.5~3.5 |
| 40205 | FL-1112DF 220V Two phases of wind speed | 120 | 1Φ, 50/60Hz, 220V | 170 | 1.35 / 0.78 | 9.0~11.5 | 2000~2450 | 2.5~3.5 |
| 40220 | FL-1115DF 220V Two phases of wind speed | 150 | 1Φ, 50/60Hz, 220V | 225 | 0.80 / 1.03 | 9.0~11.5 | 2450~3000 | 2.5~3.5 |
| 40246 | FL-1118DF 220V Two phases of wind speed | 180 | 1Φ, 50/60Hz, 220V | 280 | 1.07 / 1.28 | 9.0~11.5 | 2900~3600 | 2.5~3.5 |
| 40202 | FL-1109DC 110V Two phrases of wind speed | 90 | 1Φ, 60Hz, 110V | 100 | 0.81 / 0.90 | 9.0~11.5 | 1450~1750 | 2.5~3.5 |
| 40203 | FL-1112DC 110V Two phrases of wind speed | 120 | 1Φ, 60Hz, 110V | 150 | 1.17 / 1.36 | 9.0~11.5 | 2000~2450 | 2.5~3.5 |
| 40247 | FL-1115DC 110V Two phrases of wind speed | 150 | 1Φ, 60Hz, 110V | 165 | 1.27 / 1.48 | 9.0~11.5 | 2450~3000 | 2.5~3.5 |
| 40206 | FL-1509A | 90 | 1Φ, 60Hz, 110/220V | 250 | 2.26 / 1.15 | 12.5 | 2300 | 4 |
| 40207 | FL-1512A | 120 | 1Φ, 60Hz, 110/220V | 285 | 2.60 / 1.29 | 12.5 | 3150 | 4 |
| 40248 | FL-1509K/L | 90 | 3Φ, 50/60Hz, 220/380V | 160 | 0.68 / 0.43 | 12.5 | 2300 | 4 |
| 40249 | FL-1512K/L | 120 | 3Φ, 50/60Hz, 220/380V | 165 | 0.71 / 0.44 | 12.5 | 3150 | 4 |
| 40212 | FL-1509B | 90 | 1Φ, 60Hz, 110/220V | 515 | 4.65 / 2.35 | 16.5 | 3200 | 5.5 |
| 40213 | FL-1512B | 120 | 1Φ, 60Hz, 110/220V | 570 | 5.15 / 2.60 | 16.5 | 4500 | 5.5 |
| 40250 | FL-1509K | 90 | 3Φ, 50/60Hz, 220/380V | 195 | 0.95 / 0.55 | 16 | 3100 | 5.5 |
| 40251 | FL-1512K | 120 | 3Φ, 50/60Hz, 220/380V | 250 | 1.15 / 0.60 | 16 | 4400 | 5.5 |
| 40210 | FL-1509EF 220V Two phases of wind speed | 90 | 1Φ, 50/60Hz, 220V | 27 | 1.05 / 1.25 | 10.5~13.5 | 2200~2850 | 3.5~4.5 |
| 40211 | FL-1512EF 220V Two phases of wind speed | 120 | 1Φ, 50/60Hz, 220V | 365 | 1.45 / 1.73 | 10.5~13.5 | 2900~3800 | 3.5~4.5 |
| 40221 | FL-1515EF 220V Two phases of wind speed | 150 | 1Φ, 50/60Hz, 220V | 475 | 2.05 / 2.16 | 10.5~13.5 | 3400~4500 | 3.5~4.5 |
| 40208 | FL-1509EC 110V Two phases of wind speed | 90 | 1Φ, 60Hz, 110V | 180 | 1.35 / 1.64 | 10.5~13.5 | 2200~2850 | 3.5~4.5 |
| 40209 | FL-1512EC 110V Two phrases of wind speed | 120 | 1Φ, 60Hz, 110V | 305 | 1.96 / 2.78 | 10.5~13.5 | 2900~3800 | 3.5~4.5 |
| 40252 | FL-1515EC 110V Two phrases of wind speed | 180 | 1Φ, 60Hz, 110V | 385 | 3.30 / 3.55 | 10.5~13.5 | 3400~4500 | 3.5~4.5 |
* Stainless steel shell with waterproof motor is available. * Remote control is optional. AC Spare Parts Suppliers in Dubai – P&M Air Curtains Suppliers in Dubai
21
People watching this product now!
AC Spare Parts Wholesaler in Dubai
Air Curtain supplier in Dubai UAE.
We are the leading Wholesaler, Distributor, Supplier of P&M Air Curtain – Model FL-11 Serials in Dubai UAE.
